20250301 Odrive clone

Flashing firmware

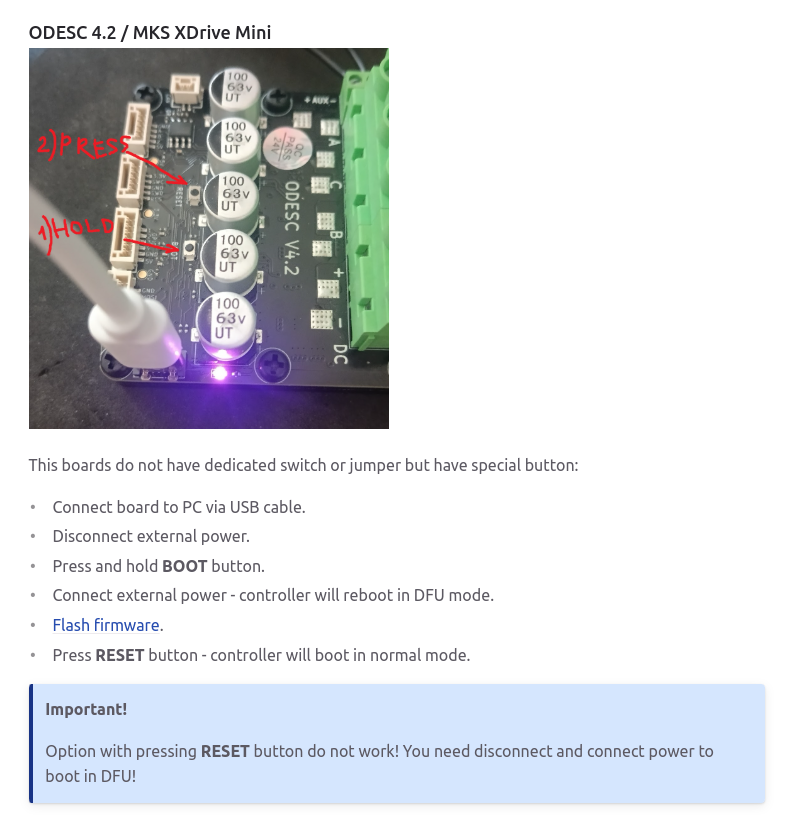

The guide here says this is how to enter DFU mode.

If it is, it doesn’t seem to work with this board. I ordered an ST-link V2 and was able to program the official firmware with this command:

openocd -f interface/stlink.cfg -f target/stm32f4x.cfg -c "program ODriveFirmware_v3.6-24V_0.5.6.elf verify reset exit"

USB control latency

Measuring the control latency with Grok by setting a command velocity and then polling the encoder until the position changes:

Code

import odrive
from odrive.enums import *
import time
import numpy as np

# Connect to ODESC
odrv0 = odrive.find_any()
if odrv0 is None:
    raise Exception("No ODESC found!")

# Configure for velocity control
odrv0.axis0.controller.config.control_mode = CONTROL_MODE_VELOCITY_CONTROL
odrv0.axis0.requested_state = AXIS_STATE_CLOSED_LOOP_CONTROL

# Encoder setup (16k PPR = 4000 pulses/rev x 4 for quadrature)
counts_per_rev = 16000  # 16k PPR confirmed
vel_command = 100.0  # 1 rev/s velocity command

# Store latency measurements
latencies = []

print("Starting 100 trials...")
for trial in range(100):
    # 1) Poll position for a bit to establish baseline
    initial_positions = []
    for _ in range(100):  # Poll 100 times to ensure stability
        initial_positions.append(odrv0.axis0.encoder.shadow_count)

    # Check if motor is stopped (velocity ~0)
    while True:
        pos1 = odrv0.axis0.encoder.shadow_count
        time.sleep(0.001)  # Minimal delay to measure velocity
        pos2 = odrv0.axis0.encoder.shadow_count
        vel = (pos2 - pos1) * 1000 / counts_per_rev  # rev/s
        if abs(vel) < 0.01:  # Stopped if < 0.01 rev/s
            break

    initial_pos = odrv0.axis0.encoder.shadow_count

    # 2) Set velocity command and record start time
    start_time = time.time()
    odrv0.axis0.controller.input_vel = vel_command

    # 3) Poll position until it changes
    while True:
        current_pos = odrv0.axis0.encoder.shadow_count
        if abs(current_pos - initial_pos) > 10:  # Moved >10 counts (~0.002 rev)
            break_time = time.time()
            break

    # Record latency
    latency = (break_time - start_time) * 1000  # Convert to ms
    latencies.append(latency)

    # 4) Stop the motor
    odrv0.axis0.controller.input_vel = 0
    # Wait until stopped
    while True:
        pos1 = odrv0.axis0.encoder.shadow_count
        time.sleep(0.001)  # Minimal delay for velocity calc
        pos2 = odrv0.axis0.encoder.shadow_count
        vel = (pos2 - pos1) * 1000 / counts_per_rev  # rev/s
        if abs(vel) < 0.01:  # Stopped if < 0.01 rev/s
            break

# 5) Calculate mean and stddev
mean_latency = np.mean(latencies)
stddev_latency = np.std(latencies)

# Stop motor and cleanup
odrv0.axis0.requested_state = AXIS_STATE_IDLE

print(f"Completed 100 trials")
print(f"Mean latency from command to motion: {mean_latency:.2f} ms")
print(f"Standard deviation: {stddev_latency:.2f} ms")

# matplotlib histogram of latencies:
import matplotlib.pyplot as plt

plt.hist(latencies, bins=20)
plt.title("Latency Histogram")
plt.xlabel("Latency (ms)")
plt.ylabel("Frequency")
plt.show()

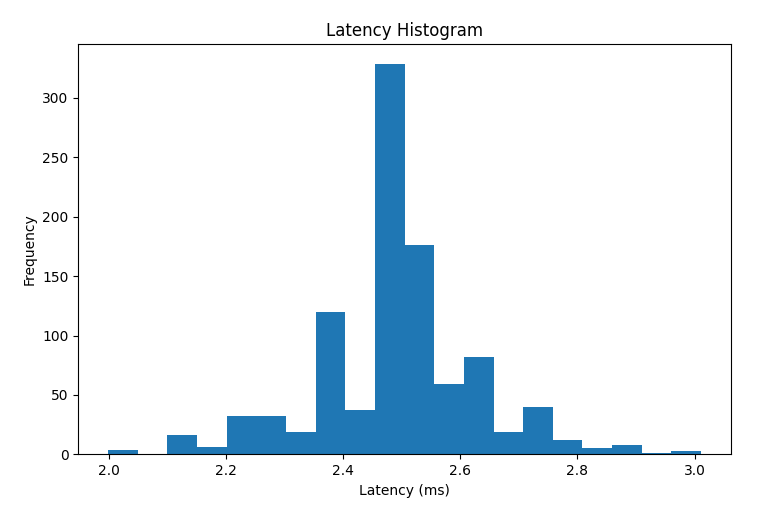

I get this:

Not bad. I don’t think a USB connection could really get much faster.
