Since this AWG streams continuously from the PC, it needs to be constantly sending data without much interruption. The acceptable interruption time is the memory capacity of the awg divided by the transmission rate of the waveform generator.
The awg has a FIFO where it receives data. Here I have set the depth of the FIFO to 14 bits, and the FIFO is 8 bits wide, since that’s the bus width of the FT232 chip. The waveform generator itself is “16” bits, 14 for the actual AD9744 and 2 bonus digital bits. It transmits at 10MSa/s
So that’s 2**14 / (2*10e6) = 0.8192ms

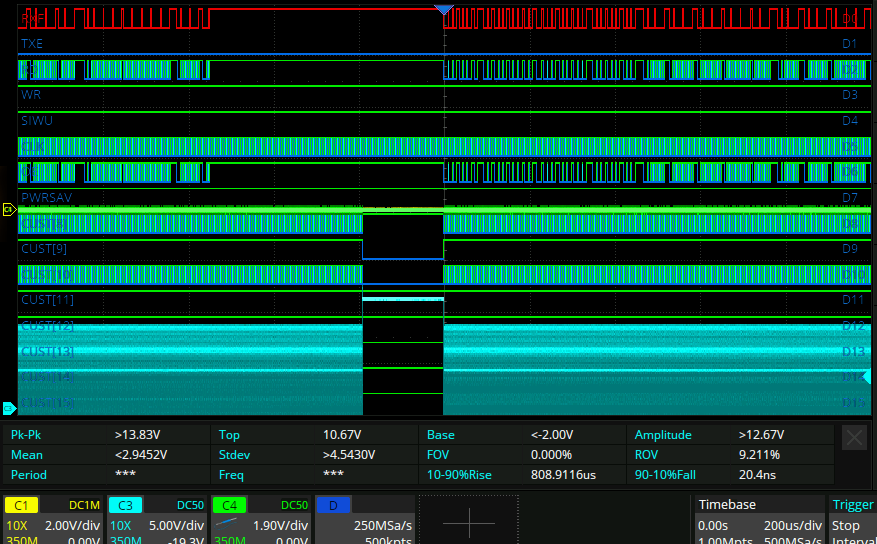

Here is what a transmission interruption looks like:
Measured interruptions
assign logic_out[0] = ftdi_rxf_n;
assign logic_out[1] = ftdi_txe_n;
assign logic_out[2] = ftdi_rd_n;
assign logic_out[3] = ftdi_wr_n;
assign logic_out[4] = ftdi_siwu;
assign logic_out[5] = ftdi_clk;
assign logic_out[6] = ftdi_oe_n;
assign logic_out[7] = ftdi_pwrsav;
assign logic_out[8] = ftdi_fsm_ready;
assign logic_out[9] = ftdi_fsm_valid;
assign logic_out[10] = ftdi_fsm_data;

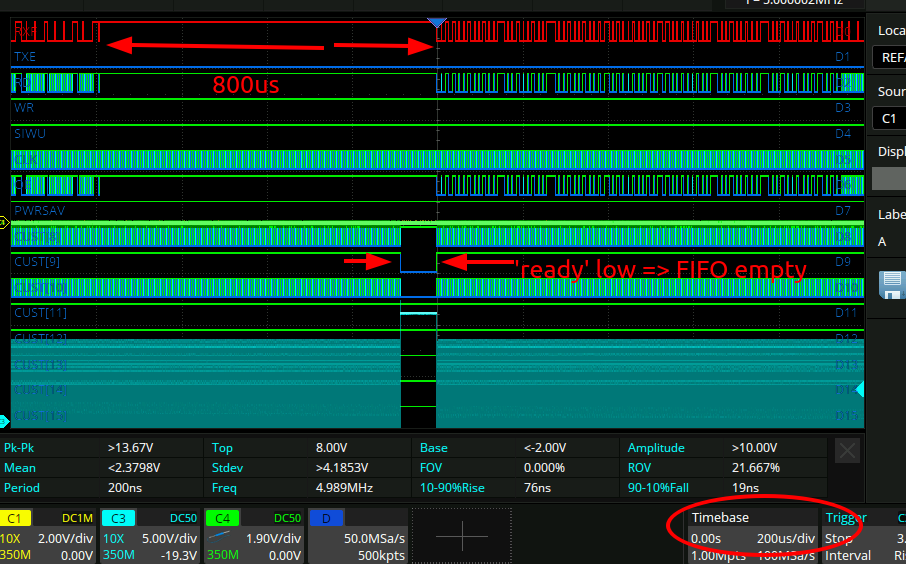

So that all lines up and looks right. with a 13 bit FIFO depth:
Also good. with a 15 bit depth I don’t observe dropouts.
Device utilization
14 bit depth:
Info: TRELLIS_IO: 62/ 245 25%
Info: DCCA: 2/ 56 3%
Info: DP16KD: 10/ 108 9%
Info: MULT18X18D: 0/ 72 0%
Info: ALU54B: 0/ 36 0%
Info: EHXPLLL: 2/ 4 50%
Info: EXTREFB: 0/ 2 0%
Info: DCUA: 0/ 2 0%
Info: PCSCLKDIV: 0/ 2 0%
Info: IOLOGIC: 0/ 160 0%
Info: SIOLOGIC: 0/ 85 0%
Info: GSR: 0/ 1 0%
Info: JTAGG: 0/ 1 0%
Info: OSCG: 0/ 1 0%
Info: SEDGA: 0/ 1 0%
Info: DTR: 0/ 1 0%
Info: USRMCLK: 0/ 1 0%
Info: CLKDIVF: 0/ 4 0%
Info: ECLKSYNCB: 0/ 10 0%
Info: DLLDELD: 0/ 8 0%
Info: DDRDLL: 0/ 4 0%
Info: DQSBUFM: 0/ 10 0%
Info: TRELLIS_ECLKBUF: 0/ 8 0%
Info: ECLKBRIDGECS: 0/ 2 0%
Info: DCSC: 0/ 2 0%
Info: TRELLIS_FF: 473/ 43848 1%
Info: TRELLIS_COMB: 821/ 43848 1%
Info: TRELLIS_RAMW: 0/ 5481 0%
15 bit:
Info: Device utilisation:
Info: TRELLIS_IO: 62/ 245 25%
Info: DCCA: 2/ 56 3%
Info: DP16KD: 18/ 108 16%
Info: MULT18X18D: 0/ 72 0%
Info: ALU54B: 0/ 36 0%
Info: EHXPLLL: 2/ 4 50%
Info: EXTREFB: 0/ 2 0%
Info: DCUA: 0/ 2 0%
Info: PCSCLKDIV: 0/ 2 0%
Info: IOLOGIC: 0/ 160 0%
Info: SIOLOGIC: 0/ 85 0%
Info: GSR: 0/ 1 0%
Info: JTAGG: 0/ 1 0%
Info: OSCG: 0/ 1 0%
Info: SEDGA: 0/ 1 0%
Info: DTR: 0/ 1 0%
Info: USRMCLK: 0/ 1 0%
Info: CLKDIVF: 0/ 4 0%
Info: ECLKSYNCB: 0/ 10 0%
Info: DLLDELD: 0/ 8 0%
Info: DDRDLL: 0/ 4 0%
Info: DQSBUFM: 0/ 10 0%
Info: TRELLIS_ECLKBUF: 0/ 8 0%
Info: ECLKBRIDGECS: 0/ 2 0%
Info: DCSC: 0/ 2 0%
Info: TRELLIS_FF: 482/ 43848 1%
Info: TRELLIS_COMB: 786/ 43848 1%
Info: TRELLIS_RAMW: 0/ 5481 0%
16 bit: With a 16 bit depth the timing also fails, I can only hit 90/100MHz:
ERROR: Max frequency for clock '$glbnet$clk100': 90.20 MHz (FAIL at 100.00 MHz)
Info: TRELLIS_IO: 62/ 245 25%
Info: DCCA: 2/ 56 3%
Info: DP16KD: 66/ 108 61%
Info: MULT18X18D: 0/ 72 0%
Info: ALU54B: 0/ 36 0%
Info: EHXPLLL: 2/ 4 50%
Info: EXTREFB: 0/ 2 0%
Info: DCUA: 0/ 2 0%
Info: PCSCLKDIV: 0/ 2 0%
Info: IOLOGIC: 0/ 160 0%
Info: SIOLOGIC: 0/ 85 0%
Info: GSR: 0/ 1 0%
Info: JTAGG: 0/ 1 0%
Info: OSCG: 0/ 1 0%
Info: SEDGA: 0/ 1 0%
Info: DTR: 0/ 1 0%
Info: USRMCLK: 0/ 1 0%
Info: CLKDIVF: 0/ 4 0%
Info: ECLKSYNCB: 0/ 10 0%
Info: DLLDELD: 0/ 8 0%
Info: DDRDLL: 0/ 4 0%
Info: DQSBUFM: 0/ 10 0%
Info: TRELLIS_ECLKBUF: 0/ 8 0%
Info: ECLKBRIDGECS: 0/ 2 0%
Info: DCSC: 0/ 2 0%
Info: TRELLIS_FF: 500/ 43848 1%
Info: TRELLIS_COMB: 940/ 43848 2%
Info: TRELLIS_RAMW: 0/ 5481 0%
Latency
If it takes a significant % of 1 cpu core to calculate the sample wire format, then that’s no good at all!

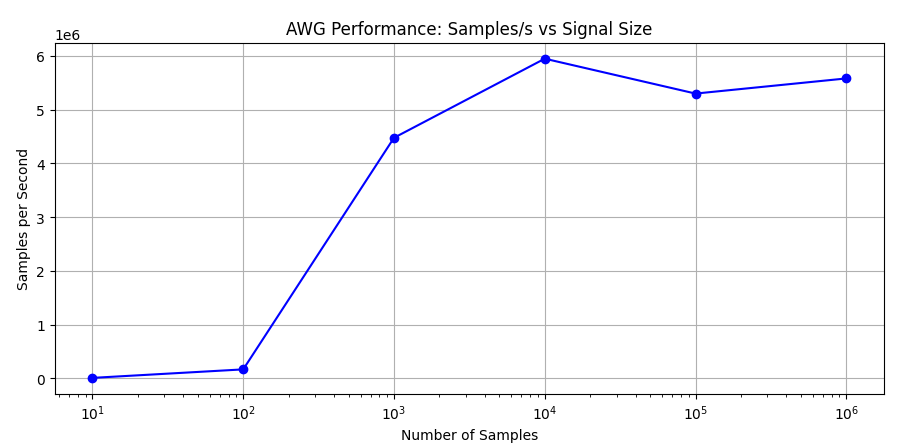

This is where it’s currently at:
completely unacceptable. Needs to be >10MSa/s, and should be more like 100e6. However when I ask ChatGPT to translate the python code into C it goes to 100e6 samples/s, so that’s nice. I will avoid adding a C library dependency into the python package for the moment, but that’s something that can be done in the future.
Overnight test
Here I ran the scope capture overnight. Found one instance in which the data was interrupted for 3.5ms. Not good!
